WPF 데이터 그리드(DataGrid)

WPF 데이터 그리드(DataGrid)

​

Grid는 컨트롤들을 담지만 DataGrid는 사용자 정의 가능한 표 형태로 데이터를 표시하는 컨트롤로 행 및 열에 데이터 or 그 모임을 표시하는 유연한 방법을 제공한다.

n DataGrid는 일반적으로 정렬 및 편집 기능을 제공하는 표 형식의 데이터를 사용자에게 표시하기 위한 사용자 인터페이스 구성 요소로 ASP.NET (GridView) 및 Windows Forms (DataGridView)와 유사하다.

n ListView 컨트롤의 다양한 기능을 통해 매우 유연한 읽기 전용 DataGrid 기능을 사용할 수 있다.

n [실습예제1]간단한 DataGrid

[MainWindow.xaml.xml]

<Window x:Class="WpfApplication5.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:WpfApplication5" mc:Ignorable="d" Title="MainWindow" Height="350" Width="525"> <Grid Margin="10"> <DataGrid Name="dgUsers" AutoGenerateColumns="False"> <DataGrid.Columns> <DataGridTextColumn Header="Name" Binding="{Binding Name}" /> <DataGridTemplateColumn Header="Birthday"> <DataGridTemplateColumn.CellTemplate> <DataTemplate> <DatePicker SelectedDate="{Binding Birthday}" BorderThickness="0" /> </DataTemplate> </DataGridTemplateColumn.CellTemplate> </DataGridTemplateColumn> </DataGrid.Columns> </DataGrid> </Grid> </Window>

[MainWindow.xaml.cs]

using System; using System.Collections.Generic; using System.Windows; namespace WpfApplication5 { public partial class MainWindow : Window { public MainWindow() { InitializeComponent(); List<User> users = new List<User>(); users.Add(new User() { Id = 1, Name = "홍길동", Birthday = new DateTime(1971, 7, 23) }); users.Add(new User() { Id = 2, Name = "박길동", Birthday = new DateTime(1974, 1, 17) }); users.Add(new User() { Id = 3, Name = "정길동", Birthday = new DateTime(1991, 9, 2) }); dgUsers.ItemsSource = users; } } public class User { public int Id { get; set; } public string Name { get; set; } public DateTime Birthday { get; set; } } }

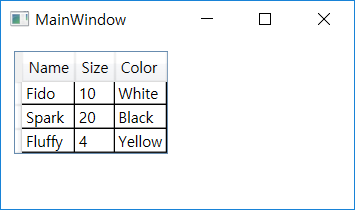

n [실습예제2]DataGrid

[MainWindow.xaml.xml]

<Window x:Class="WpfApplication6.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:WpfApplication6" mc:Ignorable="d" Title="MainWindow" Height="350" Width="525"> <Grid> <DataGrid HorizontalAlignment="Left" Margin="10,10,0,0" VerticalAlignment="Top" Loaded="DataGrid_Loaded"/> </Grid> </Window>

[MainWindow.xaml.cs]

using System.Collections.Generic; using System.Windows; using System.Windows.Controls; class Dog { public string Name { get; set; } public int Size { get; set; } public string Color { get; set; } public Dog(string name, int size, string color) { this.Name = name; this.Size = size; this.Color = color; } } namespace WpfApplication6 { public partial class MainWindow : Window { private void DataGrid_Loaded(object sender, RoutedEventArgs e) { // ... Create a List of objects. var items = new List<Dog>(); items.Add(new Dog("Fido", 10, "White")); items.Add(new Dog("Spark", 20, "Black")); items.Add(new Dog("Fluffy", 4, "Yellow")); // ... Assign ItemsSource of DataGrid. var grid = sender as DataGrid; grid.ItemsSource = items; } } }

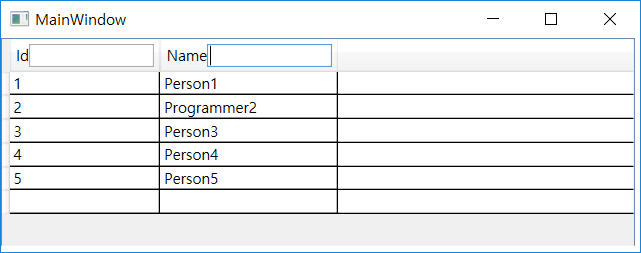

n [실습예제3]Filtered DataGrid

[MainWindow.xaml.xml]

<Window x:Class="WpfApplication6.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" Title="MainWindow" Height="447.91" Width="514.871" Loaded="Window_Loaded"> <Grid Margin="0,0,2,81"> <DataGrid x:Name="dg" HorizontalAlignment="Left" VerticalAlignment="Top" Height="413" Width="507" AutoGenerateColumns="False" Margin="0,0,-2,-76"> <DataGrid.Columns> <DataGridTextColumn Binding="{Binding Id}" Header="Id"> <DataGridTextColumn.HeaderTemplate> <DataTemplate> <StackPanel Orientation="Horizontal"> <TextBlock Text="{Binding Content, RelativeSource= {RelativeSource Mode=TemplatedParent}}"/> <TextBox x:Name="txtId" Width="100" TextChanged="txtName_TextChanged" /> </StackPanel> </DataTemplate> </DataGridTextColumn.HeaderTemplate> </DataGridTextColumn> <DataGridTextColumn Binding="{Binding Name}" Header="Name"> <DataGridTextColumn.HeaderTemplate> <DataTemplate> <StackPanel Orientation="Horizontal"> <TextBlock Text="{Binding Content, RelativeSource= {RelativeSource Mode=TemplatedParent}}"/> <TextBox x:Name="txtName" Width="100" TextChanged="txtName_TextChanged" /> </StackPanel> </DataTemplate> </DataGridTextColumn.HeaderTemplate> </DataGridTextColumn> </DataGrid.Columns> </DataGrid> </Grid> </Window>

[MainWindow.xaml.cs]

using System; using System.Collections.Generic; using System.Collections.ObjectModel; using System.Windows; using System.Windows.Controls; using System.ComponentModel; using System.Windows.Data; namespace WpfApplication6 { /// <summary> /// Interaction logic for MainWindow.xaml /// </summary> /// public class Skill { public int Years { get; set; } public string Name { get; set; } } public class Person { public int Id { get; set; } public string Name { get; set; } public string Position { get; set; } public List<Skill> SkillList { get; set; } } public class Persons : ObservableCollection<Person> { public Persons() { Add(new Person() { Id = 1, Name = "Person1", Position = "Manager", SkillList = new List<Skill>() }); Add(new Person() { Id = 2, Name = "Programmer2", Position = "Programmer", SkillList = new List<Skill>() }); Add(new Person() { Id = 3, Name = "Person3", Position = "Programmer", SkillList = new List<Skill>() }); Add(new Person() { Id = 4, Name = "Person4", Position = "Admin", SkillList = new List<Skill>() }); Add(new Person() { Id = 5, Name = "Person5", Position = "Tester", SkillList = new List<Skill>() }); } } public partial class MainWindow : Window { private void Window_Loaded(object sender, RoutedEventArgs e) { Persons pList = new Persons(); dg.ItemsSource = pList; } private void txtName_TextChanged(object sender, TextChangedEventArgs e) { TextBox t = (TextBox)sender; string filter = t.Text; ICollectionView cv = CollectionViewSource.GetDefaultView(dg.ItemsSource); if (filter == "") cv.Filter = null; else { cv.Filter = o => { Person p = o as Person; if (t.Name == "txtId") return (p.Id == Convert.ToInt32(filter)); return (p.Name.ToUpper().StartsWith(filter.ToUpper())); }; } } } }

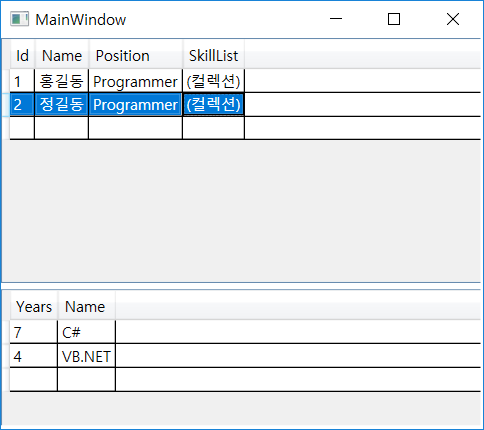

n [실습예제4]Master Detail DataGrid

[MainWindow.xaml.xml]

<Window x:Class="WpfApplication6.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" Title="MainWindow" Height="350" Width="400" Loaded="Window_Loaded"> <Grid Margin="0,0,2,81"> <DataGrid x:Name="dg" HorizontalAlignment="Left" VerticalAlignment="Top" Height="196" Width="507" SelectionChanged="dg_SelectionChanged"/> <DataGrid x:Name="dg1" HorizontalAlignment="Left" VerticalAlignment="Top" Height="214" Width="505" Margin="0,201,0,-78"/> </Grid> </Window>

[MainWindow.xaml.cs]

using System.Collections.Generic; using System.Collections.ObjectModel; using System.Windows; using System.Windows.Controls; namespace WpfApplication6 { public class Skill { public int Years { get; set; } public string Name { get; set; } } public class Person { public int Id { get; set; } public string Name { get; set; } public string Position { get; set; } public List<Skill> SkillList { get; set; } } public class Persons : ObservableCollection<Person> { public Persons() { Add(new Person() { Id = 1, Name = "홍길동", Position = "Programmer", SkillList = new List<Skill>() }); Add(new Person() { Id = 2, Name = "정길동", Position = "Programmer", SkillList = new List<Skill>() }); } } public partial class MainWindow : Window { private void Window_Loaded(object sender, RoutedEventArgs e) { Persons pList = new Persons(); pList[0].SkillList.Add(new Skill() { Years = 5, Name = "C++" }); pList[0].SkillList.Add(new Skill() { Years = 15, Name = "Visual Basic" }); pList[1].SkillList.Add(new Skill() { Years = 7, Name = "C#" }); pList[1].SkillList.Add(new Skill() { Years = 4, Name = "VB.NET" }); dg.ItemsSource = pList; } private void dg_SelectionChanged(object sender, SelectionChangedEventArgs e) { if (e.AddedItems[0] is Person) dg1.ItemsSource = ((Person)e.AddedItems[0]).SkillList; } }
